Descrizione
Segnala l'articolo
Questa macchina è un sistema completo ed efficiente per la cura del viso, che è anche un'apparecchiatura di bellezza multifunzionale con una raccolta di tre tecnologie principali nella cosmetologia medica, vale a dire, IPL, RF e laser YAG . Combinando una varietà di poteri e dando pieno gioco all'energia solare, alla RF bipolare e al laser, ha un effetto clinico significativo ed è stato dimostrato che si applica in modo sicuro ed efficace a diversi tipi di pelle e carnagione.
Principi tecnici
IPL technology- The effective depth penetration of 480nm-1200nm professional wavelength of hair removal can reach to papilla, and continuously shines to ensure the target tissues produce sufficient heat that makes hair follicles and stem cells around them lose activity until hair follicles atrophy and hairs stop growing; latest single pulse technique and sapphire contacting operation head making operation and cooling work simultaneously, not only have a good long-term effect in hair removal, but also protect normal skin tissues from harm and make customers feel more comfortable during the operation.RF Technology- Radio frequency emitter is pressed up against the skin. These radio waves get past the outer skin layers and deliver heat energy to the muscles and tissues beneath. The heat helps to contract these layers and build up collagen levels. The overall result tightens up the outer layers of skin and reduces wrinkling effects. Since there's a lot of heat involved, some
cooling must be applied to the skin at the same time.
YAG technology- on the basis of the theory that immediate and high-energy laser emission can efficiently crushes the pigment of diseased tissues, YAG makes irradiated pigment particles absorb power and swell to crack. Part of them splitting into more tiny nibs are excreted, and part of them are swallowed by body macrophage and excreted through lymphatic system, by which pigments are eliminated. Because normal tissue does not absorb the laser with fixed wavelength, thus the integrity of the cell framework is
maintained without conditions that invoke scars form.
Applicable Area
1.Hair removal
2.Freckle
3.Rejuvenation
4.Wrinkle
5.treatment of telangiectasia
6.Improves dullness
7.Tattoos removal
8.Effectively remove all eyebrows
9.Treatment of pigmented skin lesions and mixed pigmentation
Parameters
Parametri tecnici |
|
Display |
Schermo touch da 10,4 pollici |
Metodo di raffreddamento |
Raffreddamento ad acqua + raffreddamento ad aria + refrigerazione dei semiconduttori |
Rilevamento del flusso d'acqua |
SÌ |
Rilevamento della temperatura dell'acqua |
SÌ |
Rilevamento alta pressione |
SÌ |
Potenza totale |
2600W |
Parametro IPL |
|
Dimensione del punto |
10*40mm |
Gamma spettrale |
480--1200nm,530--1200nm,640--1200nm |
Gamma di raffreddamento |
1-5 file |
Numero di impulsi |
1-5 |
Energia |
1-50J/CM² |
Ritardo luminoso |
1-5S |
Larghezza di impulso |
1-10 ms |
Intervallo di impulso |
1-99 ms |
Frequenza luminosa IPL |
1-10 Hz |
Parametro laser |
|
Lunghezza d'onda |
532nm, 1064nm, 1320nm |
Larghezza di impulso |
10 ns |
Energia |
100--1200 mJ |
Frequenza di lavoro |
1-10 Hz |
Diametro del punto |
1-8mm |
Luce di puntamento a infrarossi lontani |
SÌ |
Parametri RF |
|
Frequenza RF |
5 MHz |
Dimensioni della sonda |
22mm, 30mm, 36mm |
Energia |
1-20 |

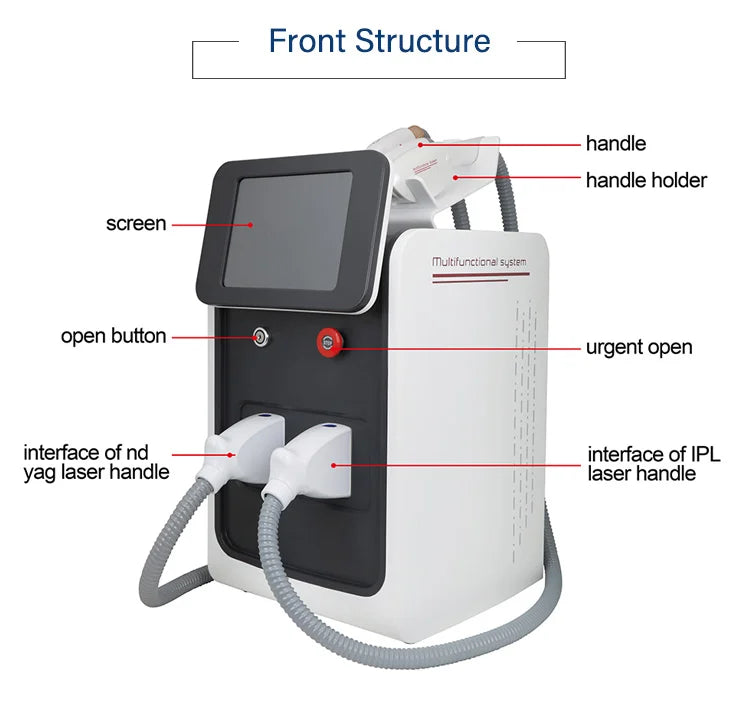

Detailed Images
