Description
Camera Element:
- Camera Sensor: Features a 1/2.3" type Exmor R CMOS image sensor with selectable pixel resolutions ranging from 1020*1080 to 4K, reaching up to 8.93 million pixels. Offers 20x optical zoom and supports 4K video at 2160p/29.97, 2160p/25.
- Foot Switch: Complies with YY 1057-2016 requirements.
Field of View: Covers a range from at least 25mm to 300mm.
Depth of Field: Ensures a depth of field of at least 100mm under maximum magnification.
Light Source Illumination: Provides illumination intensity ≥2500 1X at the center of the light source.
Light Source Color Temperature: Maintains a color temperature of ≥5100K.
Radiant Heat: Limits radiation intensity to not exceed 50W/m² at maximum intensity.
Spot Diameter: Minimum spot diameter of 60mm.
Illumination Uniformity: Uniformity maintained at no more than 1.2.
Geometric Distortion: Absolute value of pincushion or barrel distortion around the output image not exceeding 3%.
Color Reproduction Accuracy: Maximum error in color reproduction for a single color block within 24 color side view cards should not exceed 30NBS; average color reproduction error should not exceed 20NBS.
Functional Requirements:
- Must-have functions include zoom in/out, timing display, green filter, auto focus, manual focus, red plus/minus, foot-pedal capture, and white balance functions.
- Software functionalities:
- Patient management: Create new patients, modify information, etc.
- Medical record management: Find medical records, view/edit reports, etc.
- Observation inspection: Image and video acquisition, freezing, viewing, etc.
- Image editing: Add logo annotations, measurements, etc.
- Report function: Report editing, printing, etc.
- Terminology management: Add, delete, modify, import, and export functions, etc.
- Account management: Account creation, permission settings, etc.
Network Security:
- Data Interface: Patient information, pictures, and reports stored in local database.
- User Access:
- Login via password.
- Administrator access rights include user management and password modification.
- Ordinary users assigned to common group with main access rights.
Supported Formats by USB3.0 Lens: Digital high-definition lens supports various resolutions including 720P25/30/50/60, 1080P25/30/50/59.94/60, 2K, and 4K.
HD Color Camera: Utilizes Sony's original high-definition color camera with strong anti-interference ability and high sensitivity. Features a 1/2.86CMOS image sensor for high-quality HD images.
Powerful Image Processing: Capable of collecting, displaying, freezing, storing, and deleting images throughout the inspection process. Offers large-capacity image storage and database management, storing over 1 million image data with 1-50 continuous image acquisitions each time.
Product Performance Characteristics: Ultra-bright white LED light source provides uniform brightness and color, enhancing tissue color reproduction by over 60% compared to traditional halogen light sources. Software features automatic acetic acid reaction timing and automatic filter and timing acquisition functions for clinical colposcopy.
Packing list:

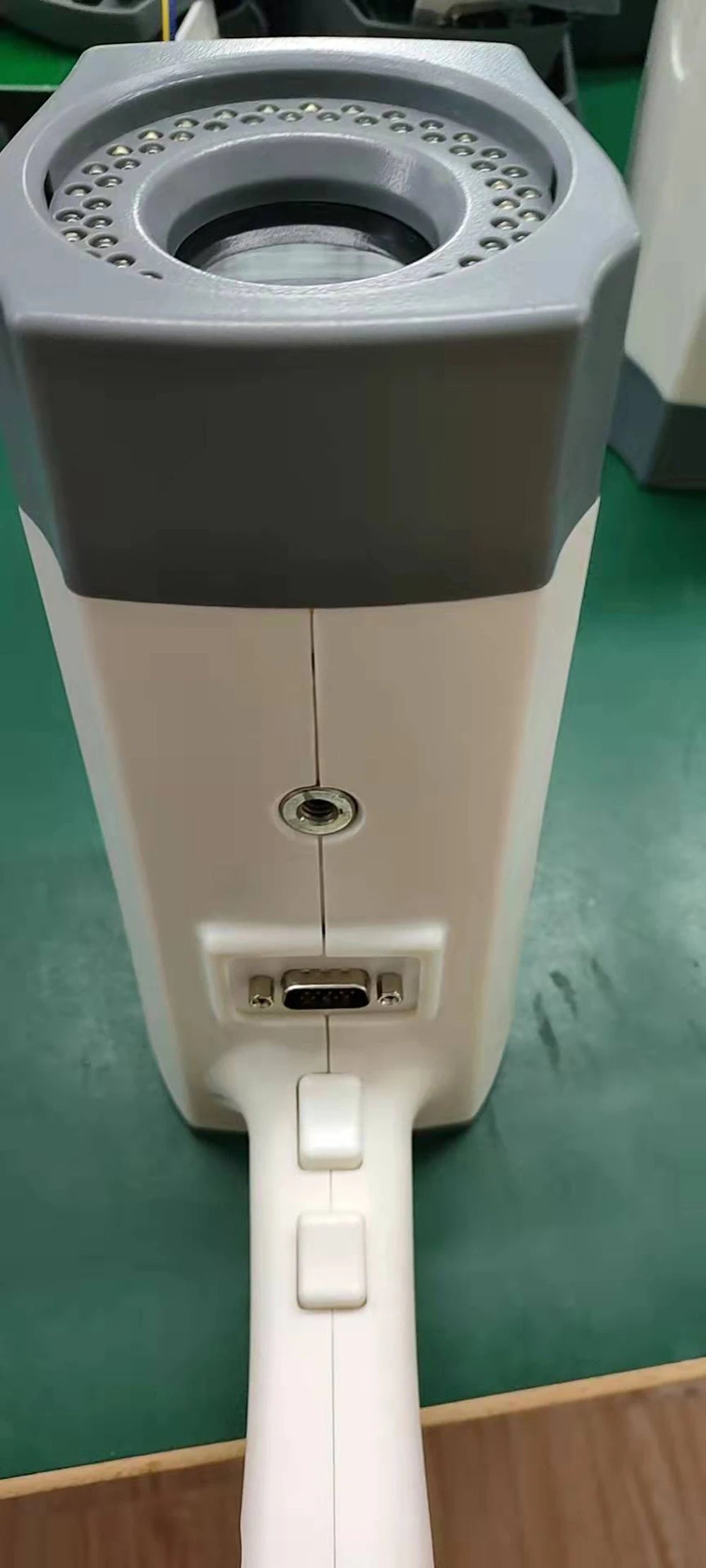

Colposcope
Acquisition card
Control cable
Remote controller
Foot switch
Power adapter
English software
Because the tripod is very large, it does not include it. You can buy a tripod for the camera at the local store. Their interfaces are the same.
We will send the corresponding power plug and voltage according to your country.
