Description
Report Item
Specification:

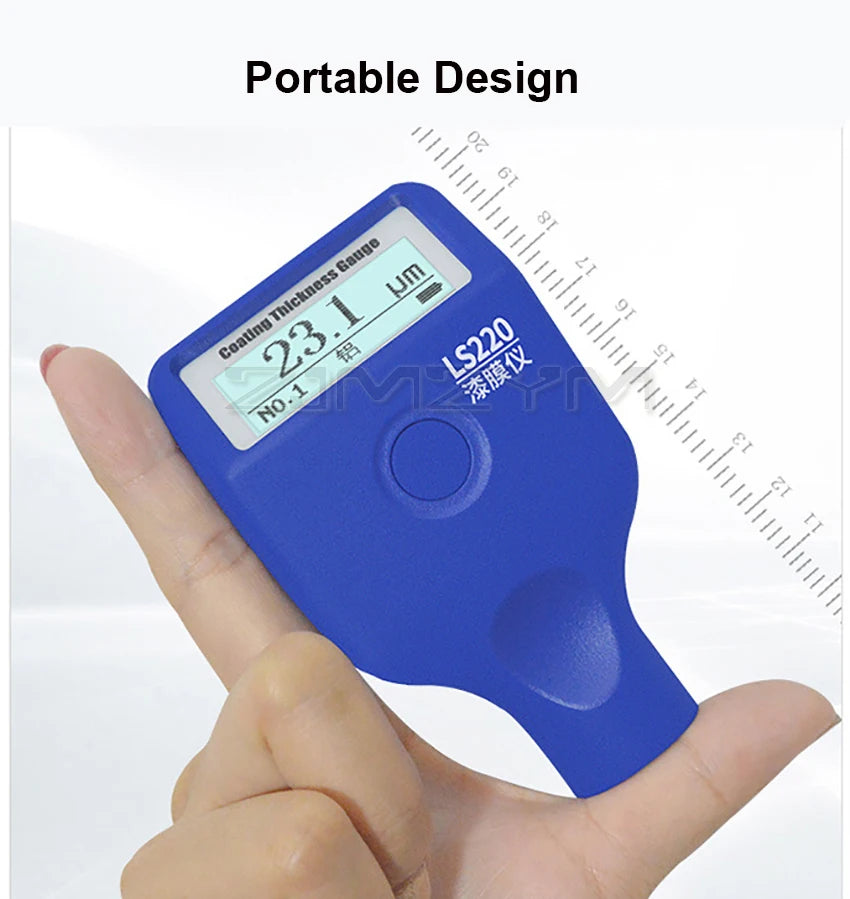

Name: LS220 Paint Coating Thickness Gauge
Display: 128x48 dot matrix LCD
Operating Temperature Range: -20°C~50°C
Storage Temperature Range: -20°C~60°C
Measuring Range: 0.0um - 2000μm
Resolution:
0.1μm: (0μm-99.9μm)
1μm: (100μm-999μm)
0.01mm: (1.00mm-2.00mm)
Measurement Accuracy: ≤±(3% reading+2μm)
Unit: μm/mil
Measurement Interval: 0.5S
Minimum Measurement Area: φ= 25mm
Minimum Radius of Curvature: Convex: 5mm / Concave: 25mm
Minimum Substrate Thickness: Fe: 0.2mm / NFe: 0.05mm
Measurement Principle: Fe: Hall effect / NFe: Eddy current effect
Probe Tip: Ruby fixed
Probe Type: Built-in one-piece
Bluetooth Function: None
Mobile APP Connection: Not supported
Power Supply Mode: 2pcs*1.5V AAA alkaline batteries (Battery not included)
Size: 1016228mm
Package Included:
LS220 Paint Coating Thickness Gauge *1
Cloth Bag *1
NFe Zero Adjustment Plate *1
Fe Zero Adjustment Plate *1
Standard Plate *1
Manual *1
