Portable Heart ECG Monitor Software Electrocardiogram CE Health Monitor Rapid ECG EKG Tester Easy Handheld Prince 180B
1. Our Prince-180B ECG monitor is portable and easy to operate.

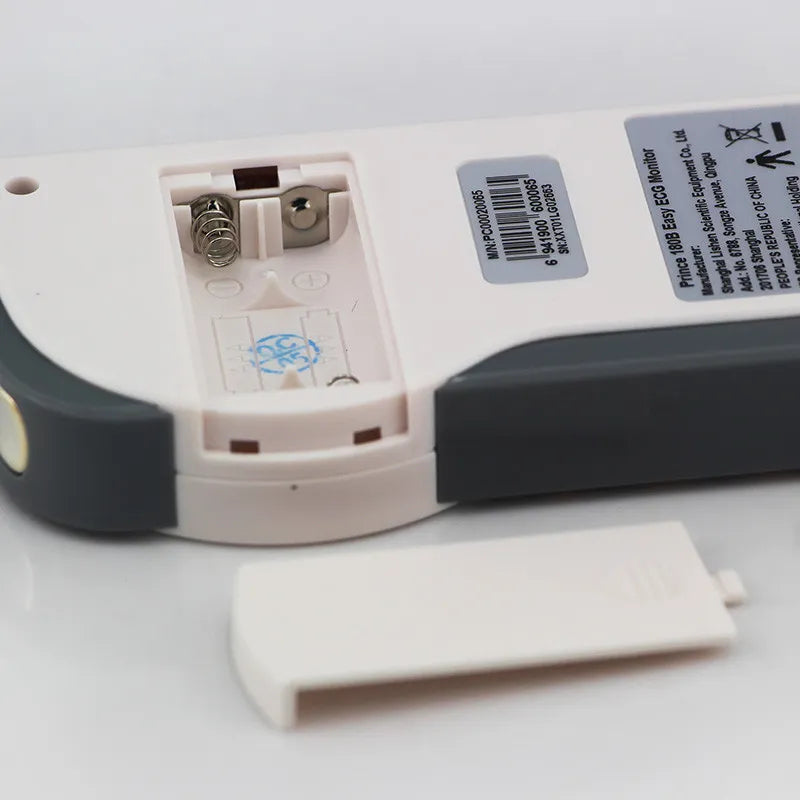

2. It adopts 2 x AAA alkaline batteries power supply with low voltage indication.
3. The portable ECG monitor uses a monochrome LCD display with switchable backlight.
4. Optional 3 lead ECG cable is available.
5. PC data management software is used for data transmission and analysis.
6. The portable ECG monitor will automatically power off in 35 seconds if no signal is detected.
7. It performs rapid ECG and HR measurement by recording a 30 second ECG waveform.
8. The ECG monitor has analysis function and can report 17 types of suggestive results.
9. It offers memory storage capacity of up to 300 records, which is expandable by 8GB SD card.
10. Gain mode is available for signal amplification.
Specifications of Prince-180B Portable ECG Monitor
ECG Measurement Measurement Modes Lead I/II/Chest switchable(1- channel)
ECG Bandwidth 0.5~40Hz
Internal Noise Level ≤30μVp-p
Heart Rate Range 30~240bpm
Heart Rate Accuracy ±2bpm or 2%, whichever is greater
Display Scale 5mm/mV±10%
Wave Form Sweeping Speed 20mm/s±10%
Explanation 17 type of waveform
Display Mode LCD
Resolution 240 × 160
Screen Size 57.6 × 40mm
General Dimensions 125mm(L) × 70mm(W) × 21.5mm(H)
Net Weight(without batteries) 106g
Power Supply 2 × AAA batteries
Voltage 2.7~3.3V DC
Max. Average Working Current ≤50mA(Backlight off)
Package list :
1 x USB data transfer cable
1 x ECG Viewer Software on mini-CD (Windows compatible)
1 x Illustrated manual
1 x Quick illustrated reference guide to ensure ease of us
Because software is updated now and then, we did not send CD. it is better to download the latest version sofwtare directly on website. there is the link:http://www.healforce.com/cn/index.php?ac=article&at=read&did=422
