15KW Induction Heater Induction Heating Machine Metal Smelting Furnace High Frequency Welding Metal Quenching Equipment

Specification

Name: High Frequency Induction Heater

Model: HH-15KW

Voltage: 220V/110V (optional)
We will send the corresponding power plug and voltage according to your country.

Maximum power: 15KW

Frequency: 30-100KHZ

Cooling water pressure: >0.2MPa 2-5L/Min

Inlet water temperature: <40℃

Net weight: 21KG

Machine size: 460*200*385mm

Applications: Welding, hot forging, hot fitting, quenching, melting, etc

Package Included:

15KW Induction Heater*1

Features:

1. All solid state, using power device MOSFET, automatic frequency tracking

2. High frequency, fast heating speed, more energy saving

3. Safe and durable, adjustable and easy to operate

Instructions:

The machine needs to dissipate heat through water. The simple

method is: water pump + water tank (please prepare them by yourself);

stainless steel water pump is recommended for the water pump.

Please purchase a 100-200L capacity for the water tank nearby;

it can also be equipped with a 1P chiller

Please note:

1. Voltage can be customized;

2. In the process of product upgrade, the appearance will be slightly changed, We will default to send the latest version, thank you~

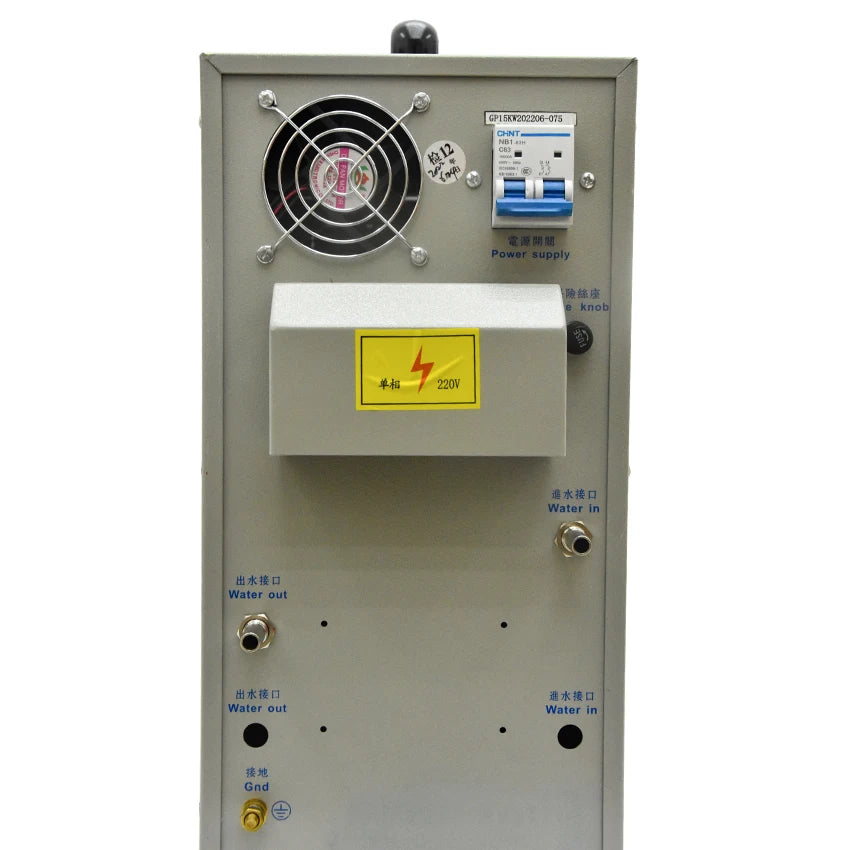

Picture showing
